Sunday, April 7, 2013

KBoP Part 17



Studio model of Klingon Bird of Prey
Another mini-update.

Like I said, there needed to be more detail in other more visible parts of the ship, and one area that needed help was the shallow opening full of wiring or plumbing on the top rear of the command pod. At right, you see what I'm talking about on the real thing. I didn't attempt to recreate the studio model, but by the end you'll see what I did do to improve the detail on this area of the kit.


The kit detail is skimpy here, so I decided to cut it out and back up the hole with an insert loaded with detail.Cutting out the hole was pretty easy. As easy as Cortez burning his ships. No turning back now!



The plastic is pretty thick for the scale so I hogged out the surrounding area to make it look like a thin shell. I slopped on black paint in order to...








...transfer the impression of the opening to this sheet styrene backing. Actually, it's two layers cemented together. I held it in place to make it conform to the shape of the inside of the hull, and when it came out it was permanently formed into about the right shape.


Here's the blank styrene backing held in the opening.














I added wire, solder, and styrene shapes to fill in the area of the backing that would fit in the opening, painted it red-brown with a grimy black wash and dark yellow drybrushing.












Then installed it with 1-minute epoxy.

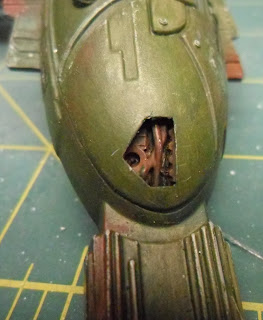

And here's the prize in the box. It's jazzed up with a bit of fiber optic lighting.
